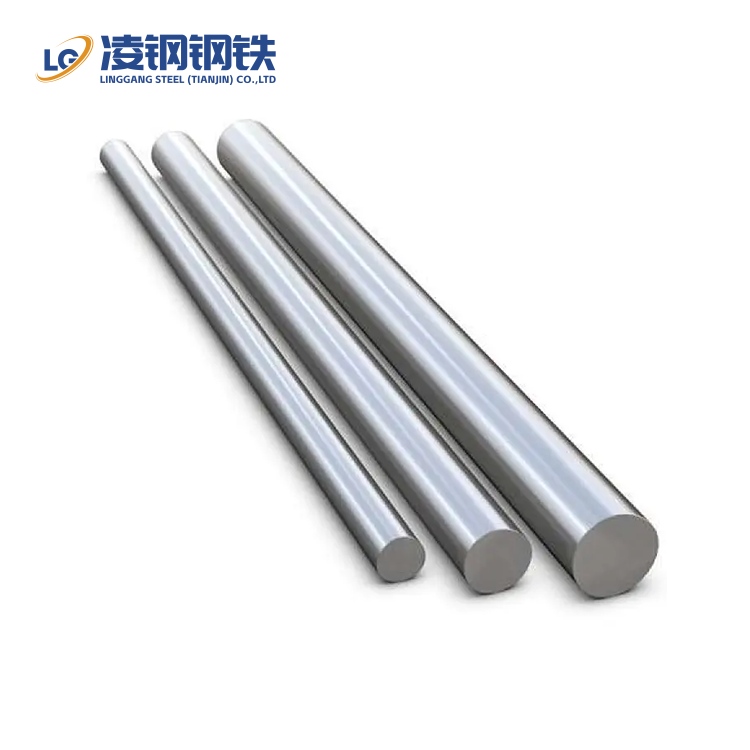

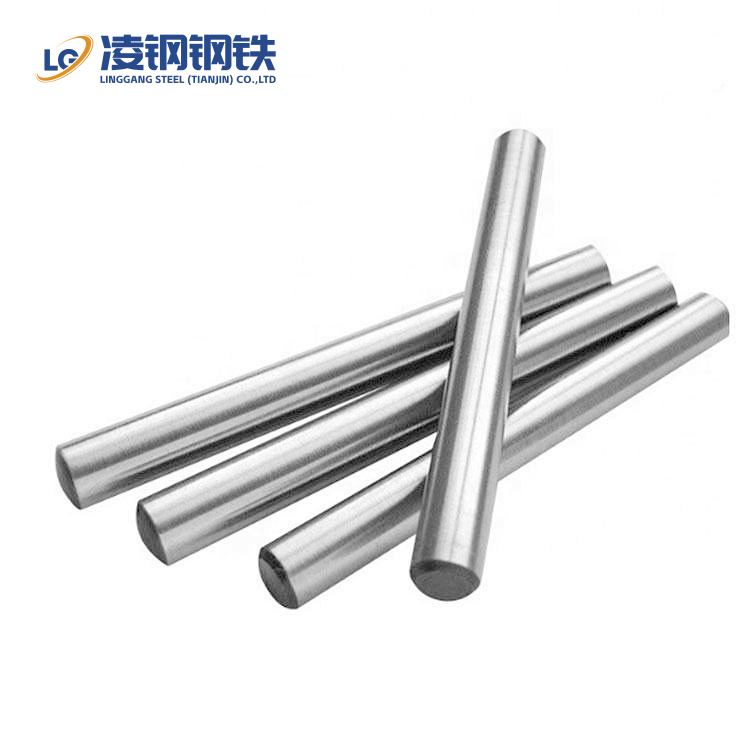

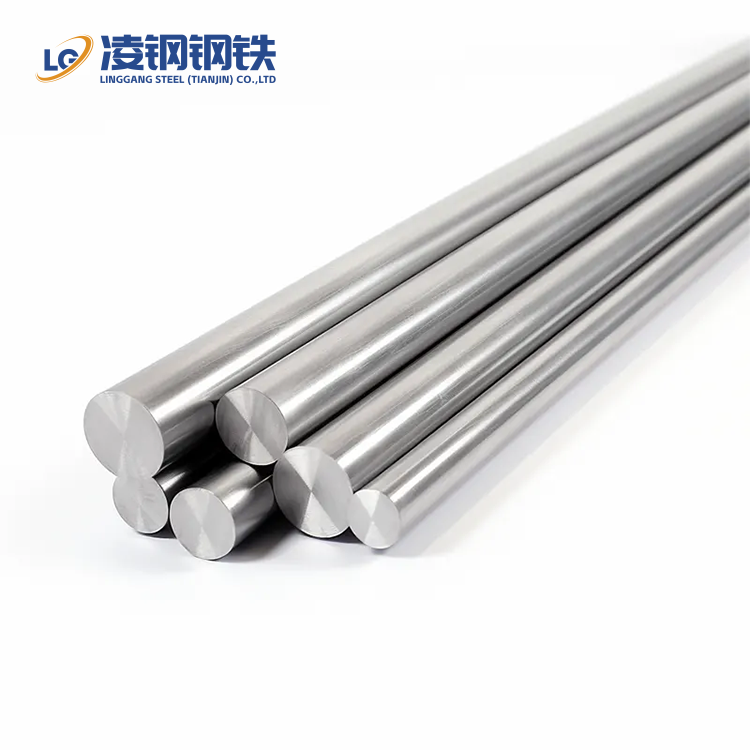

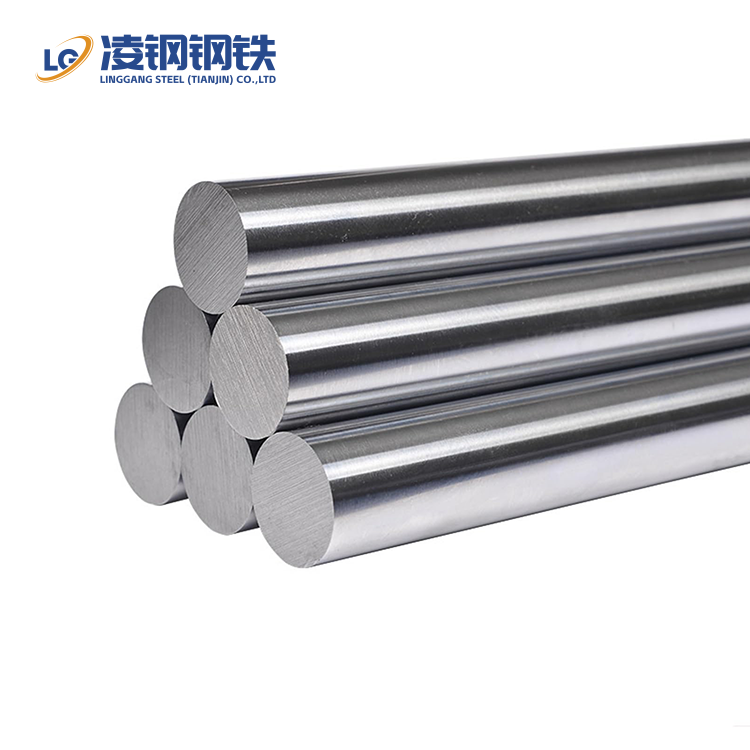

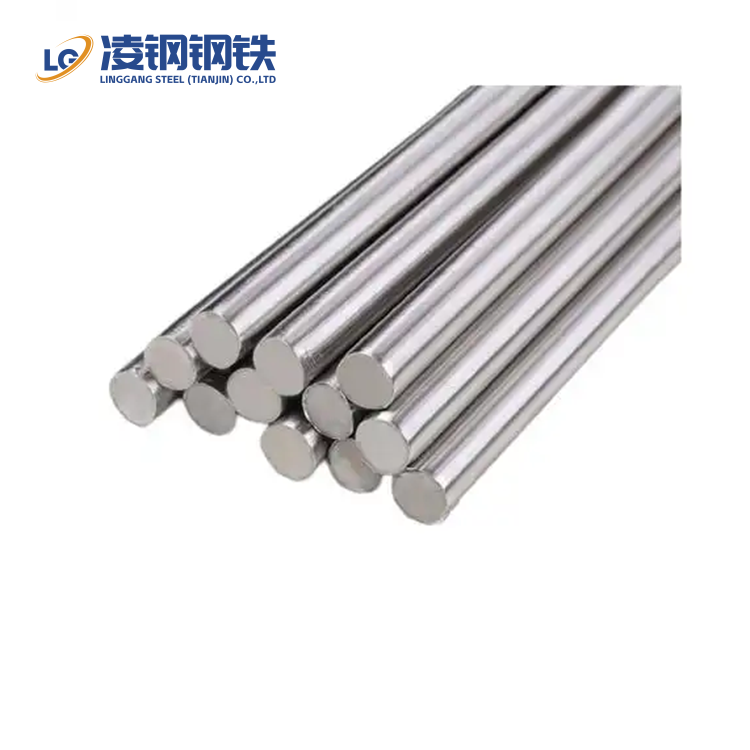

304 Stainless Steel Bar Description

304 stainless steel bar is one of the most popular stainless steel bars across the globe for a number of reasons. Iron, chromium and nickel are the main elements that constitute 304 stainless steel. This combination gives rise to the outstanding oxidation resistance and corrosion resistance of 304 stainless steel bars. 304 stainless steel has stronger anti-rust properties than 200 series stainless steel materials as a versatile stainless steel. It also outperforms them in temperature resistance. The 304 stainless steel bar has characteristics of a smooth surface, high plasticity, toughness and mechanical strength, as well as resistance to corrosion by acids, alkaline gases, solutions and other media. 304 stainless steel bars are commonly used as manufacturing parts in fields like food processing equipment, building materials, automobile parts.


Product Parameters

Product Name

304 Stainless Steel Bar

Type

Steel Bar

Outer Diameter

Round Bar

4mm-500mm

Hexagon Bar

18mm-57mm (11/16″ to 2-3/4″)

Square Bar

18mm-47mm (11/16″ to 1-3/4″)

Flat Steel

1/2 "to 10", Thickness: 2mm-150mm, Can provide customized

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.

Scope of Application

Stainless steel bars are used in a variety of industries such as shipbuilding,

Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement,

Heavy earthmoving equipment and construction, etc.


Chemical Composition

C

Si

Mn

Cr

Ni

S

P

≤ 0.08

≤1.0

≤ 2.0

18.0~20.0

8.0~10.5

≤ 0.03

≤ 0.035


Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥ 520

≥ 205

≥ 40

≤ 187HB ;≤ 90HRB;≤ 200HV


Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(ΜΩ. cm)

8.03

193

16.9

16.2

72
