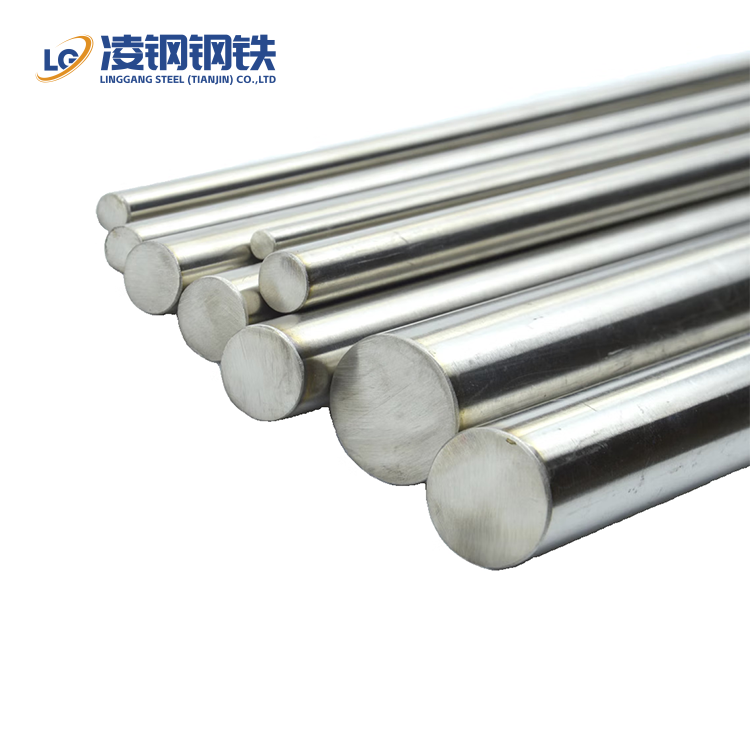

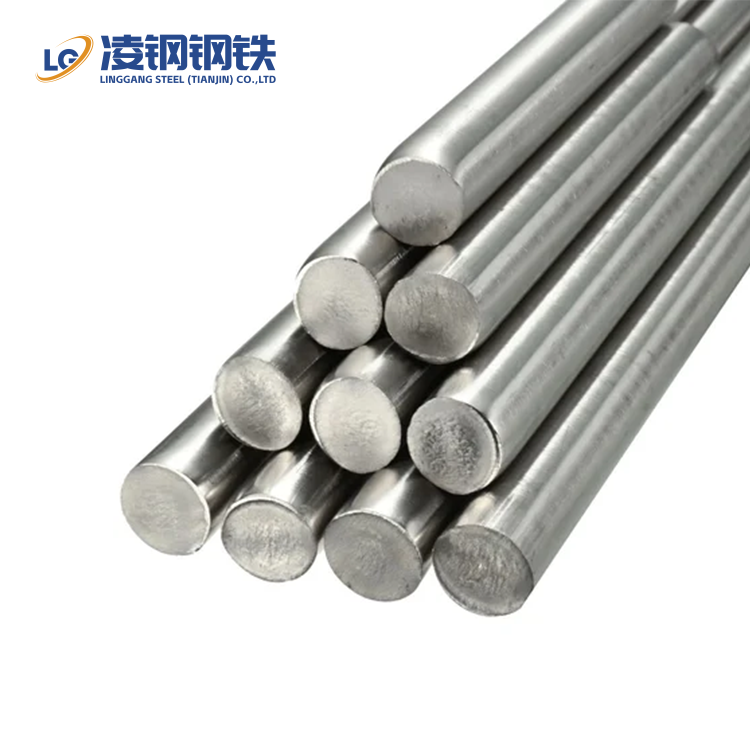

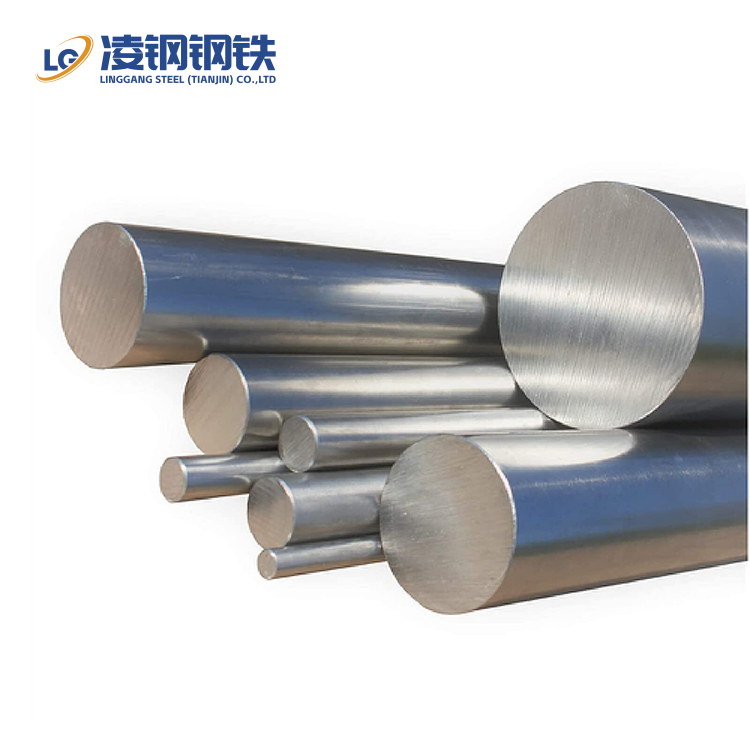

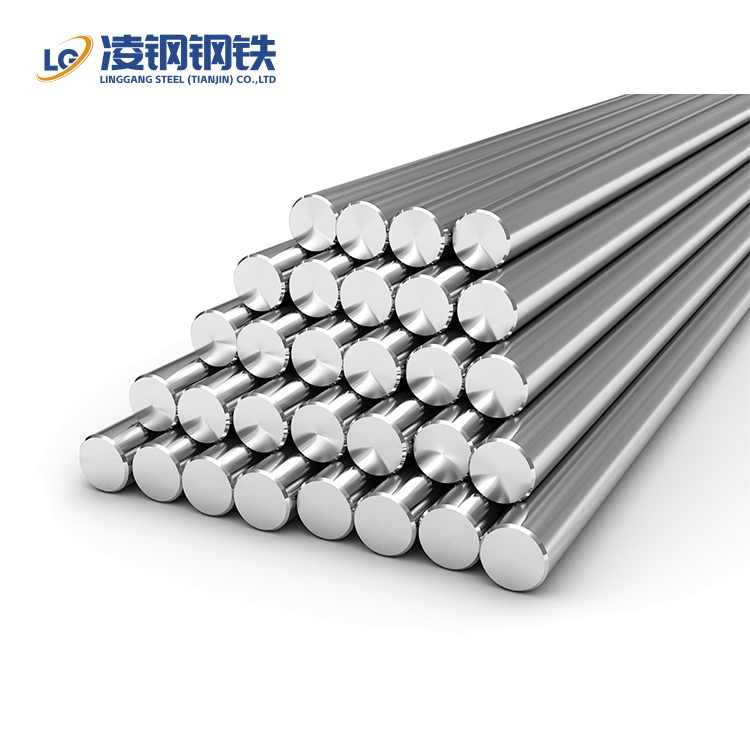

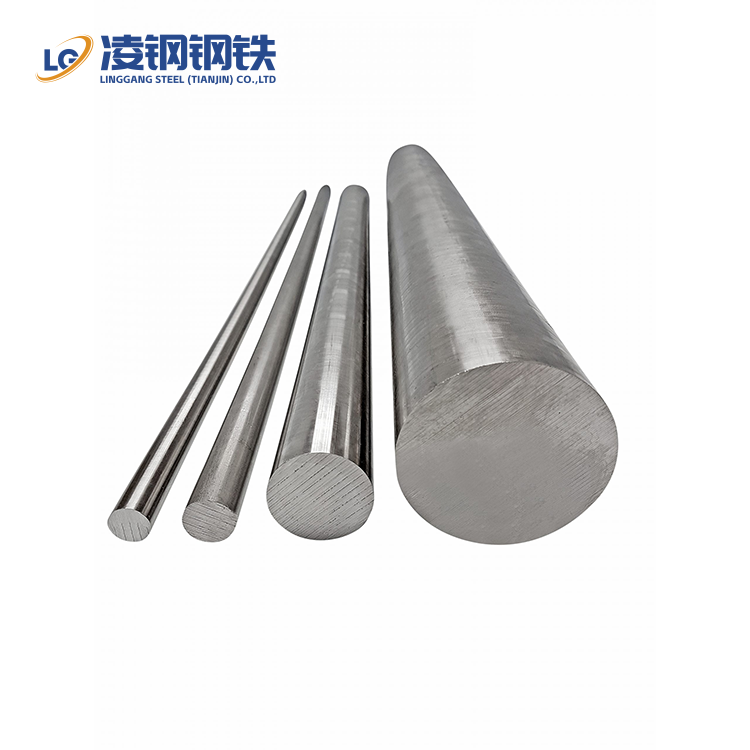

403 Stainless Steel Bar Description

403 stainless steel bars are suitable for use in harsh environments given its good corrosion resistance. Additionally, they also have good mechanical properties, including high hardness, toughness and wear resistance. One thing to note is such bars are not as resistant to corrosion as other stainless steels such as 304 or 316 and may not be suitable for use in extremely corrosive environments. The Nickel element enables 403 stainless steel to obtain a complete austenite structure, providing the steel with higher strength, plasticity and toughness, as well as excellent hot and cold workability, cold formability, weldability. Additionally, it improves the thermodynamic stability of 403 stainless steel.


Product Parameters

Product Name

403 Stainless Steel Bar

Type

Steel Bar

Outer Diameter

Round Bar

4mm-500mm

Hexagon Bar

18mm-57mm (11/16″ to 2-3/4″)

Square Bar

18mm-47mm (11/16″ to 1-3/4″)

Flat Steel

1/2 "to 10", Thickness: 2mm-150mm, Can provide customized

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.

Scope of Application

Stainless steel bars are used in a variety of industries such as shipbuilding,

Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement,

Heavy earthmoving equipment and construction, etc.


Chemical Composition

C

Si

Mn

Cr

Ni

S

P

≤ 0.15

≤ 0.5

≤1.0

11.5~13.0

≥ 0.6

≤ 0.03

≤ 0.04


Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥485

≥290

≥25

≤ 98HRB


Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(10-6 Ω.m)

7.80

190

9.9

21.5

740

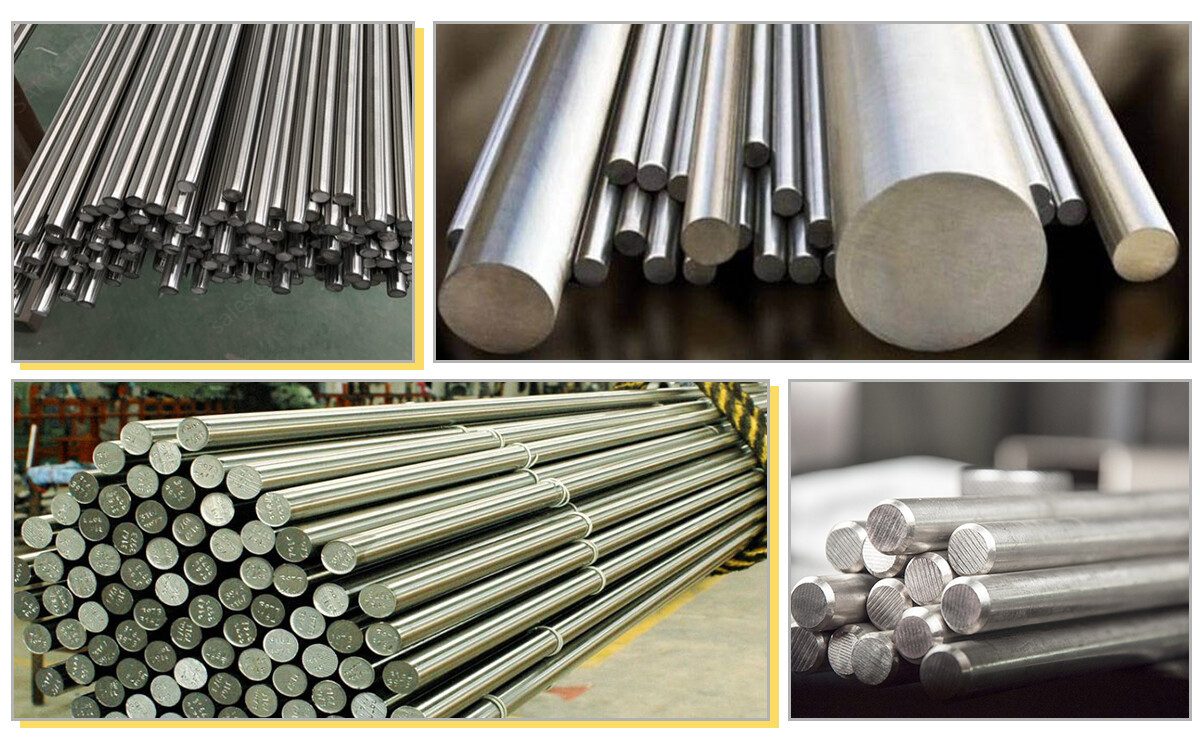

不锈钢棒产品展示

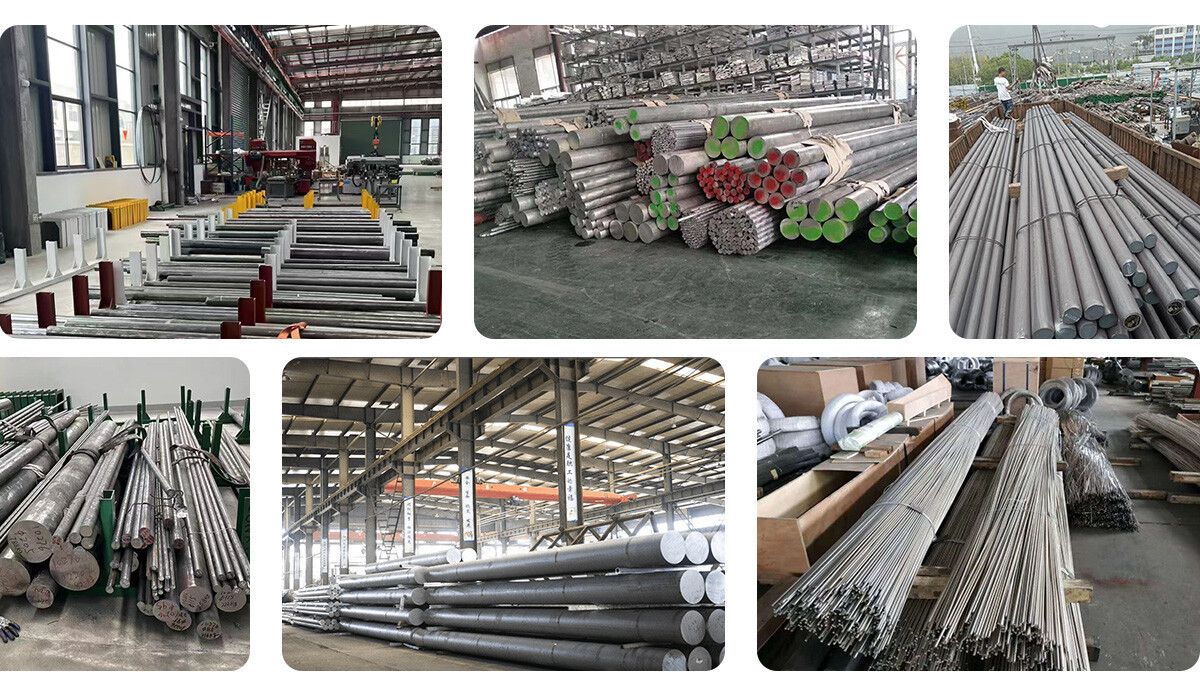

不锈钢棒工厂

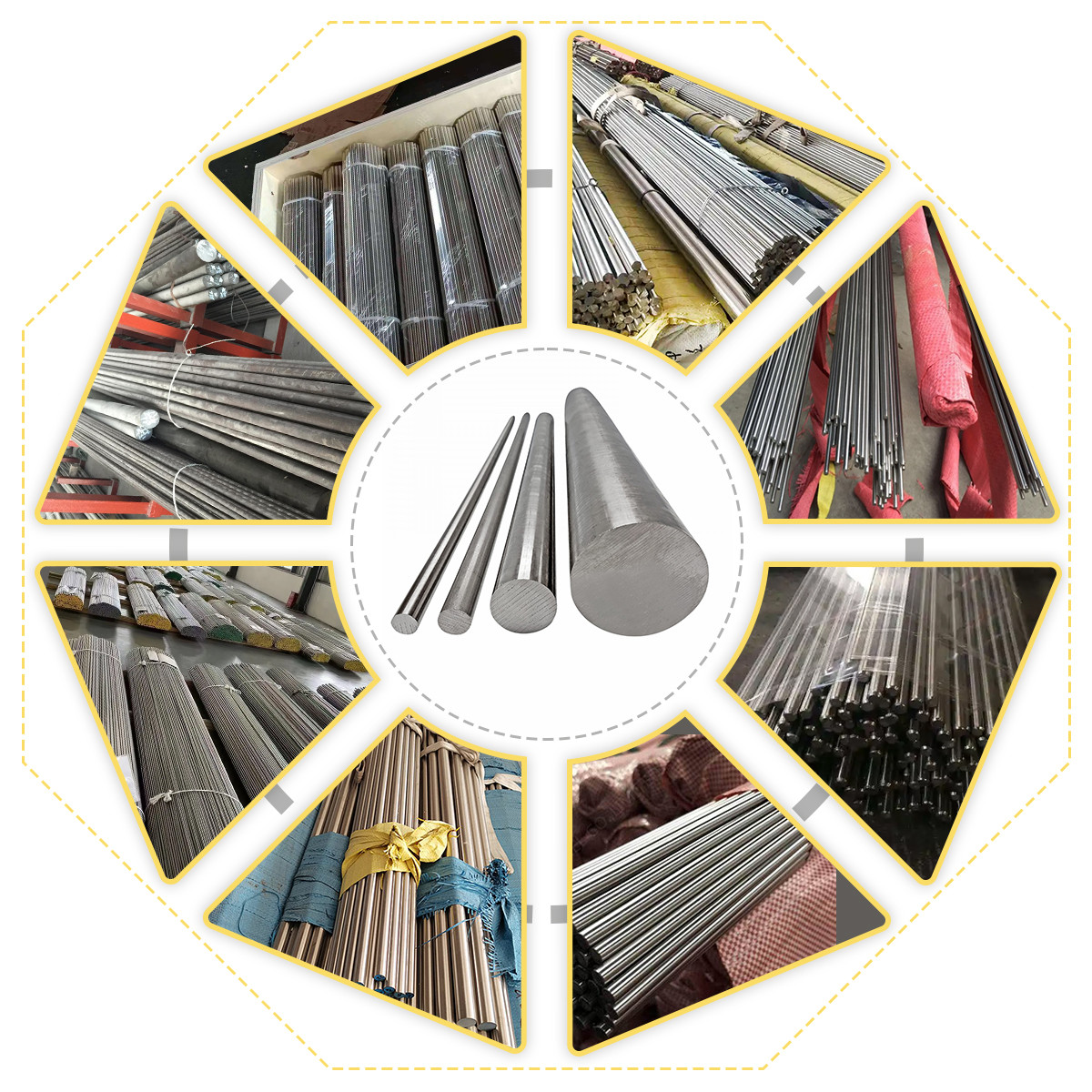

不锈钢棒包装
