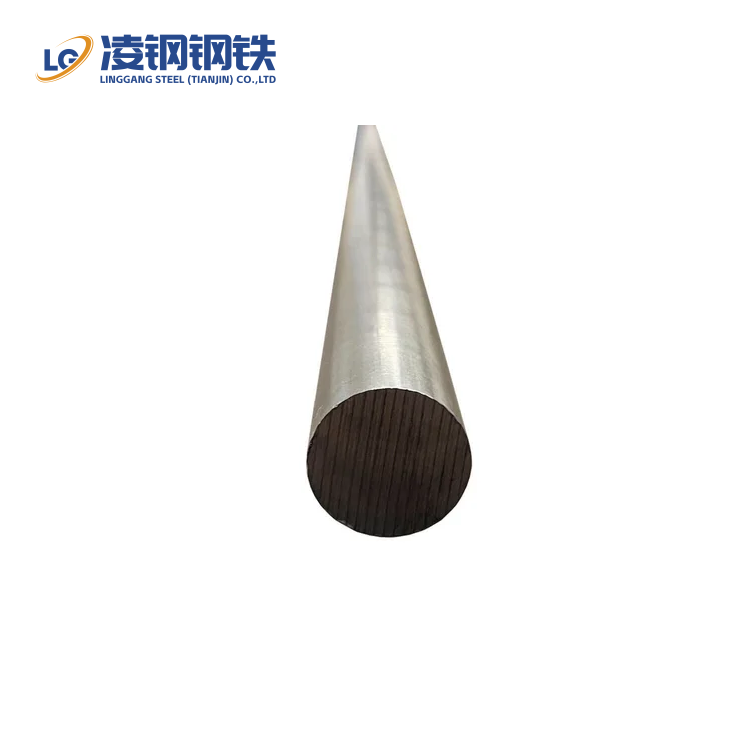

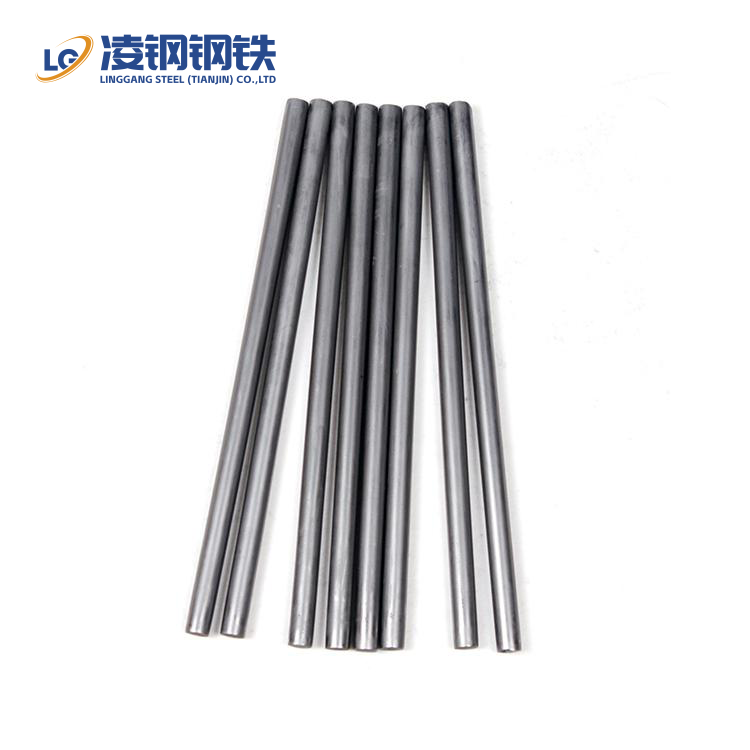

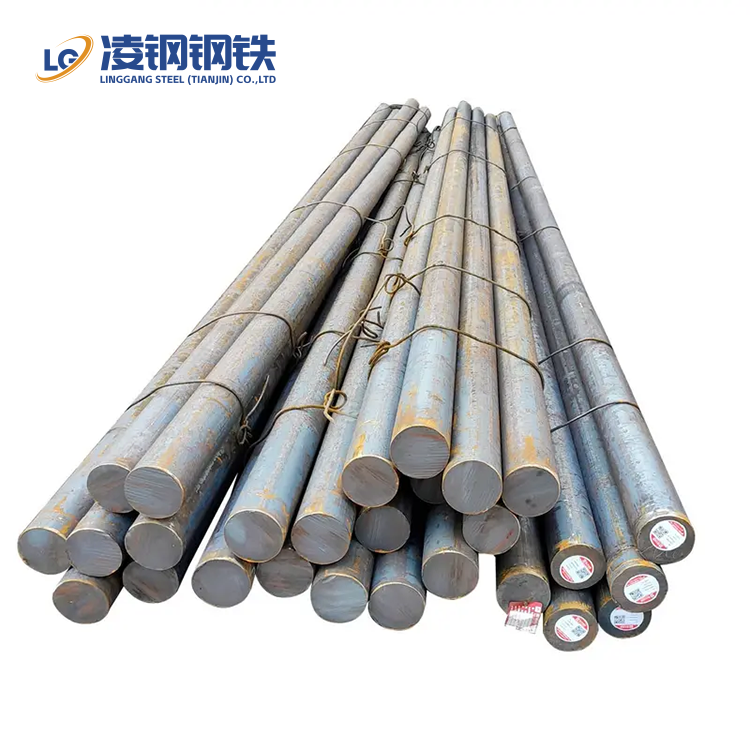

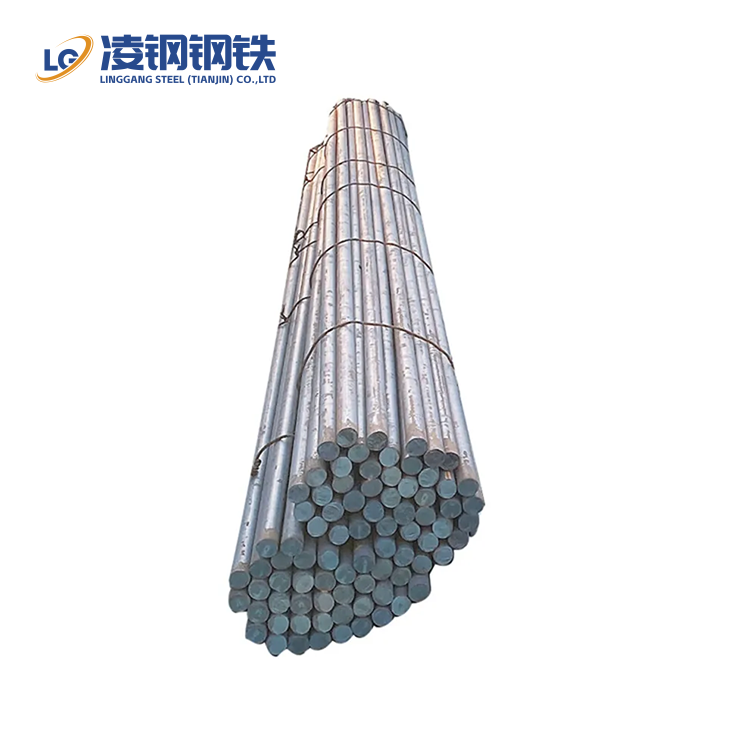

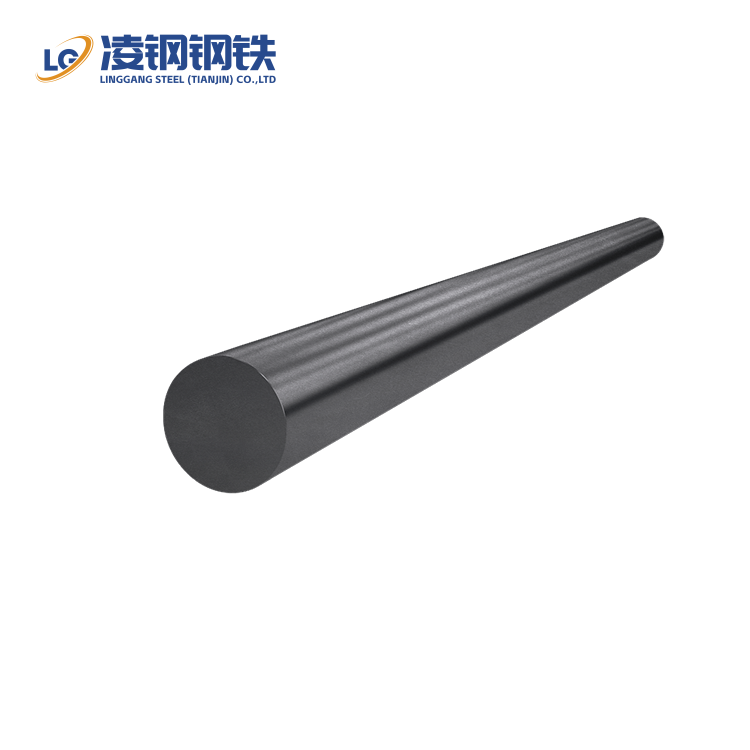

C22 / C35 / C40 / C60 / C50 / C55 / C45 / C75 Carbon Round Steel Bar
Phone : +0086 17695537635
Whatsapp : +86 17695537635
Email : pery@tjlinggang.com
Contact Us
Product Description
Product Display
Spot Warehouse
Packaging and Transportation

A572/S355JR Round Steel Bar Description

A572 steel bar is made of a low-carbon, low-alloy high-strength steel employing the electric furnace steelmaking technology. So the main component is scrap iron. Resulting from its reasonable composition design and strict process control, A572 steel bar is widely favored for high purity and excellent performance. Its molten steel pouring manufacturing method not only gives the steel coil good density and uniformity, but also ensures that the steel bar has superior mechanical properties after cooling. A572 carbon steel bar is widely used in construction, bridges, heavy machinery and other fields. At the same time, it shows outstanding performance in welding, forming and corrosion resistance with its low carbon and low alloy characteristics.


Product Parameters

Product Name

Carbon Round Steel Bar

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.

Common Round Bar Specifications

3.0-50.8 mm, Over 50.8-300mm

Flat Steel Common Specifications

6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm

Hexagon Bar Common Specifications

AF5.8mm-17mm

Square Bar Common Specifications

AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm

Length

1-6meters, Size Accept Custom

Diameter(mm)

Hot Rolling Round Bar

25-600

Cold Rolling Square Bar

6-50.8

Hot Rolling Square Bar

21-54

Cold Rolling Hexagon Bar

9.5-65

Cold Rolling Round bar

6-101.6

Forged Rebar

200-1000

Surface Process

Bright, Polished, Black

Other Services

Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.


Chemical Composition

A572

C

Mn

P

S

Si

Grade 42

0.21

1.35

0.03

0.03

0.15-0.4

Grade 50

0.23

1.35

0.03

0.03

0.15-0.4

Grade 60

0.26

1.35

0.03

0.03

0.40

Grade 65

0.23-0.26

1.35-1.65

0.03

0.03

0.40


Mechanical Properties

A572

Yield Strength (Ksi)

Tensile Strength (Ksi)

Elongation % 8 inches

Grade 42

42

60

20

Grade 50

50

65

18

Grade 60

60

75

16

Grade 65

65

80

15


Physical Performance

Physical Performance

Metric

Imperial

Density

7.80 g/cc

0.282 lb/in³


Scope of Application

ASTM A572 carbon steel low-alloy steel is widely used as bridge panels, support plates, mechanical mounting plates, etc. for construction equipment, transmission towers, racks and other equipment.


Equivalent Material

EU

German Standard

Japanese Standard

French Standard

British Standard

Canada

Italy

Spain

National Standard

International

Portugal

India

EN

DIN,WNr

JIS

AFNOR

BS

HG

UNI

UNE

GB

ISO

NP

IS

S355JR

St52-3

SM490A

E36-2

50B

350W

Fe510B

AE355B

Q345B

E355C

FE510-B

IS961
