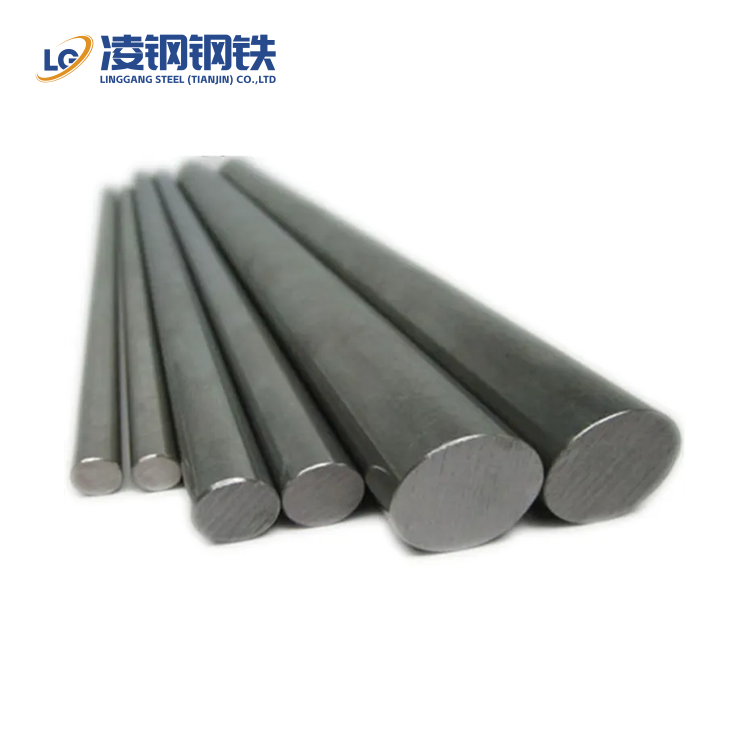

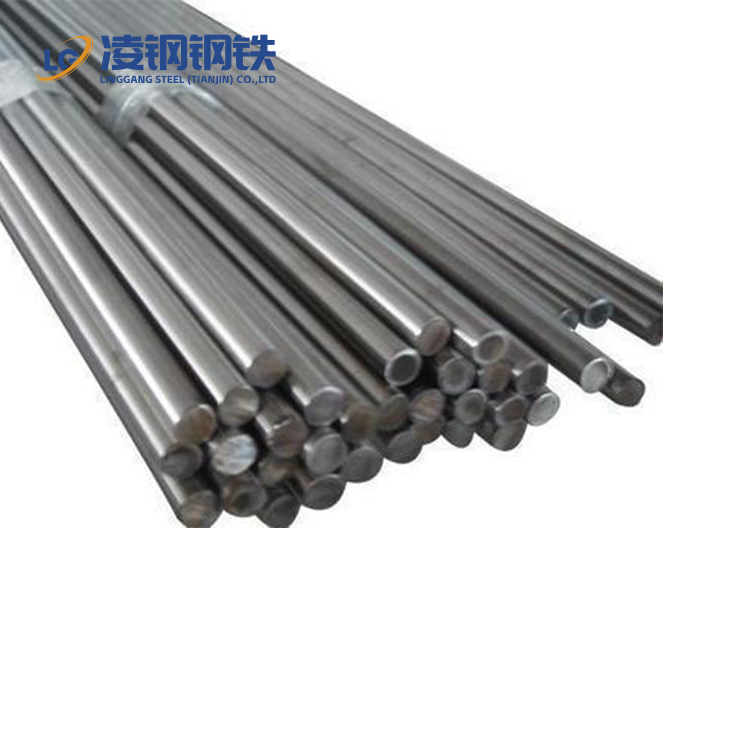

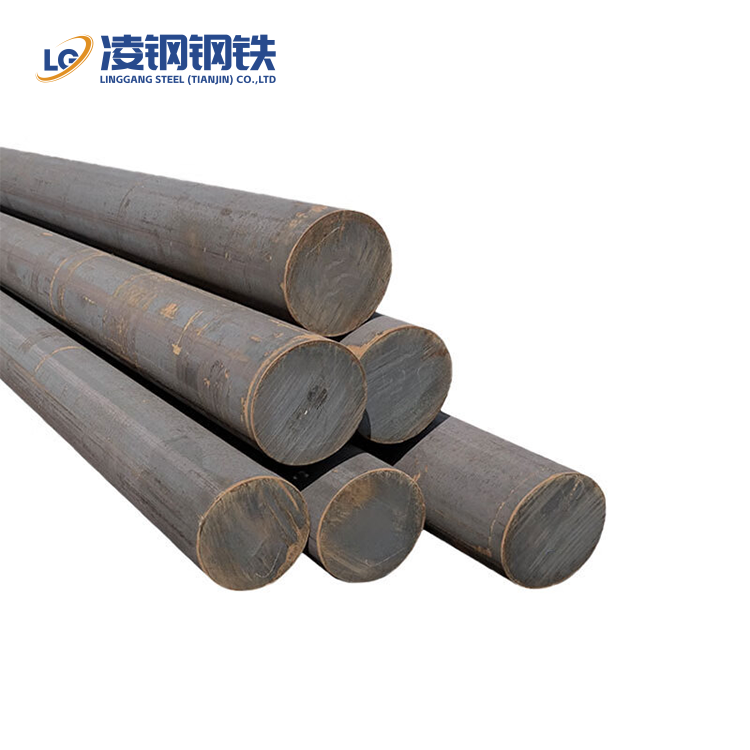

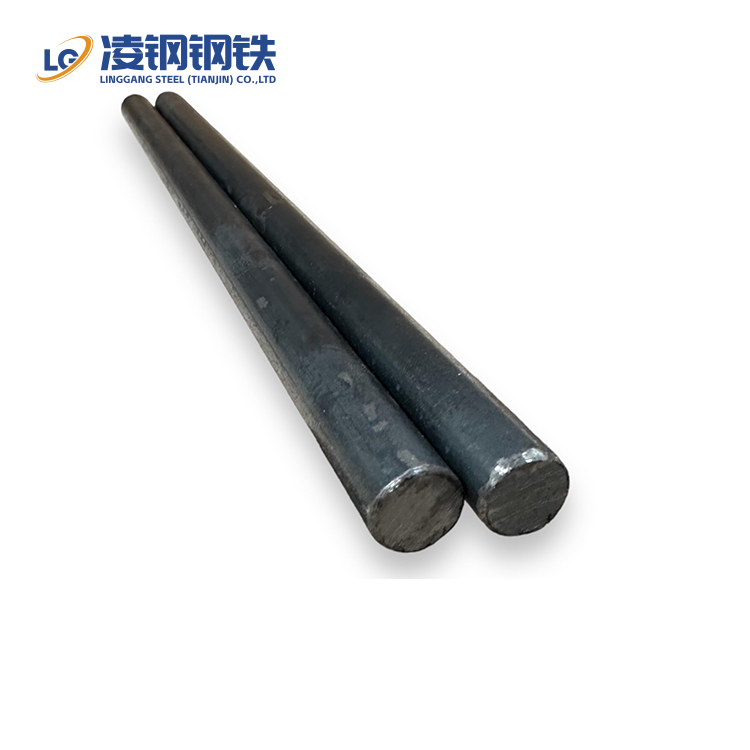

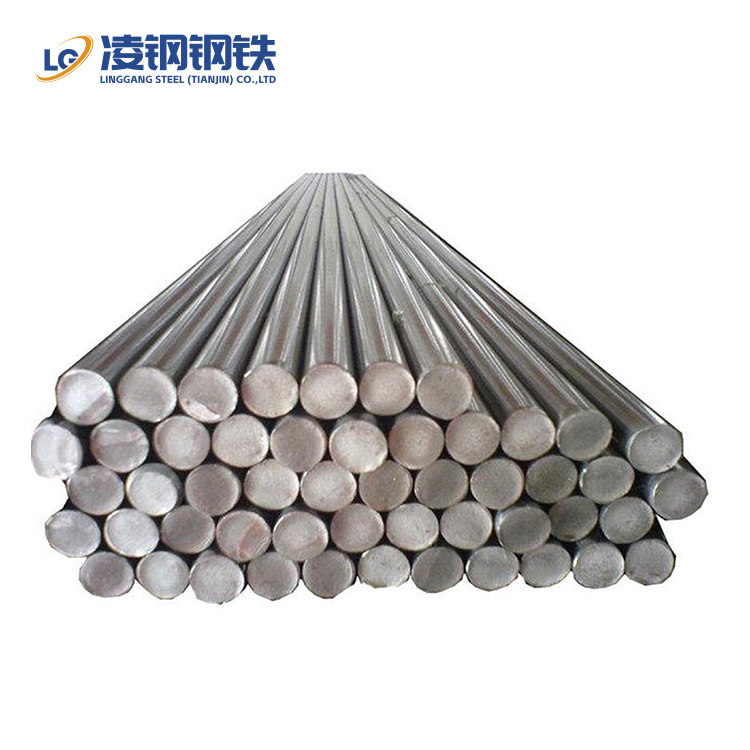

AISI/SAE 1045 C45 Round Steel Bar Description

AISI 1045 steel is characterized by good weldability, good machinability and high strength and impact properties in the normalized or hot-rolled condition. So AISI 1045 steel bar is a medium carbon steel designed to be able to function in areas requiring greater strength and hardness. This steel possesses excellent size accuracy, concentricity, and straightness which together minimize wear in high speed applications. AISI 1045 can be formed into turned, ground and polished bars that can be machined unsymmetrically with limited distortion. They are often used in the production of gears, shafts, axles, bolts, studs and machine parts.


Product Parameters

Product Name

AISI/SAE 1045 C45 Round Steel Bar

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.

Common Round Bar Specifications

3.0-50.8 mm, Over 50.8-300mm

Flat Steel Common Specifications

6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm

Hexagon Bar Common Specifications

AF5.8mm-17mm

Square Bar Common Specifications

AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm

Length

1-6meters, Size Accept Custom

Diameter(mm)

Hot Rolling Round Bar

25-600

Cold Rolling Square Bar

6-50.8

Hot Rolling Square Bar

21-54

Cold Rolling Hexagon Bar

9.5-65

Cold Rolling Round bar

6-101.6

Forged Rebar

200-1000

Surface Process

Bright, Polished, Black

Other Services

Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.


Chemical Composition

Grade

Mn

S

C

P

Si

Cr

Ni

AISI  1045

0.5-0.8

0.035

0.5-0.42

0.035

0.17-0.37

0.25

0.3


Mechanical Properties

Grade

Tensile Strength (Ksi) min

Elongation (%in 50 mm) min

Yield Strength 0.2% Proof (ksi) min

Hardness

AISI  1045

600

40

355

229


Scope of Application

1045 steel is widely used in machining, automobile manufacturing, aerospace and other fields.
