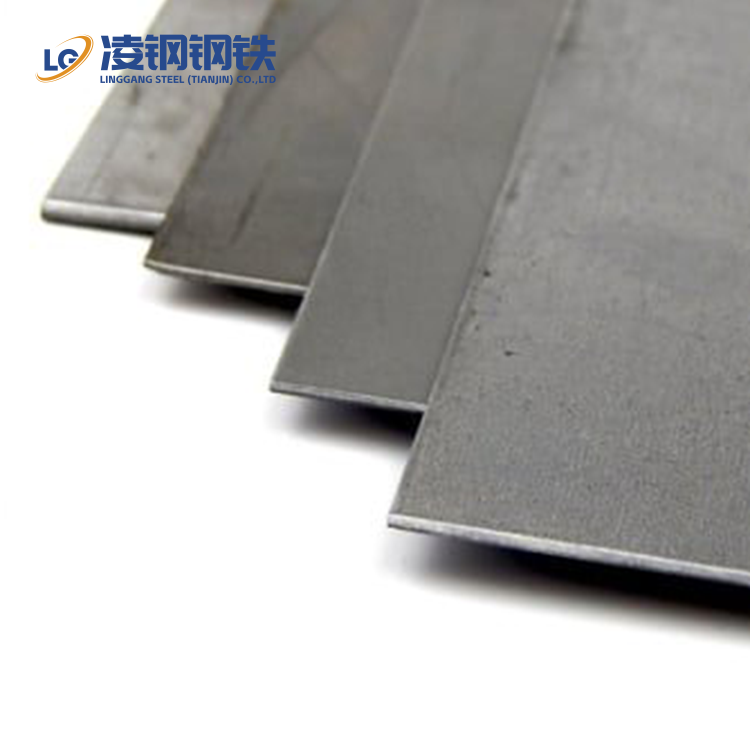

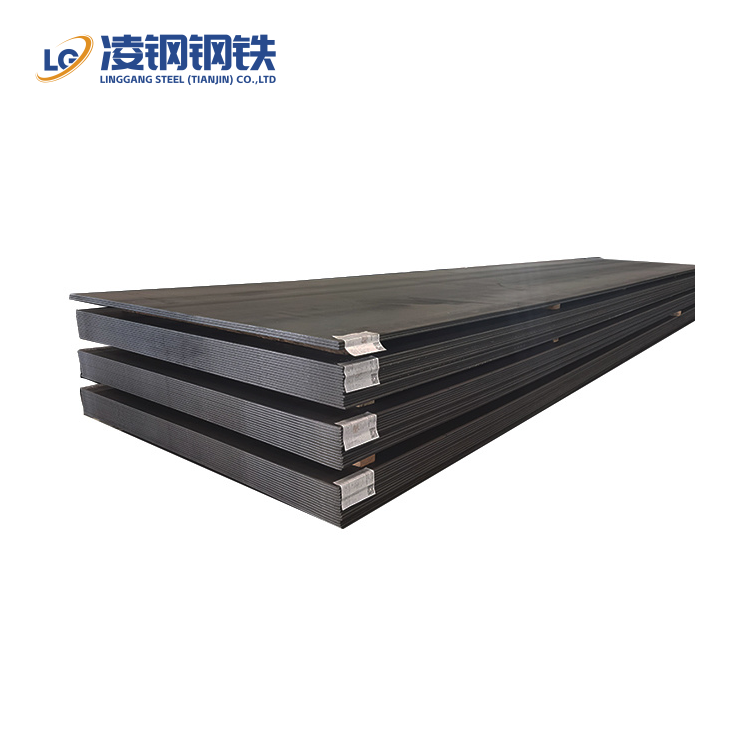

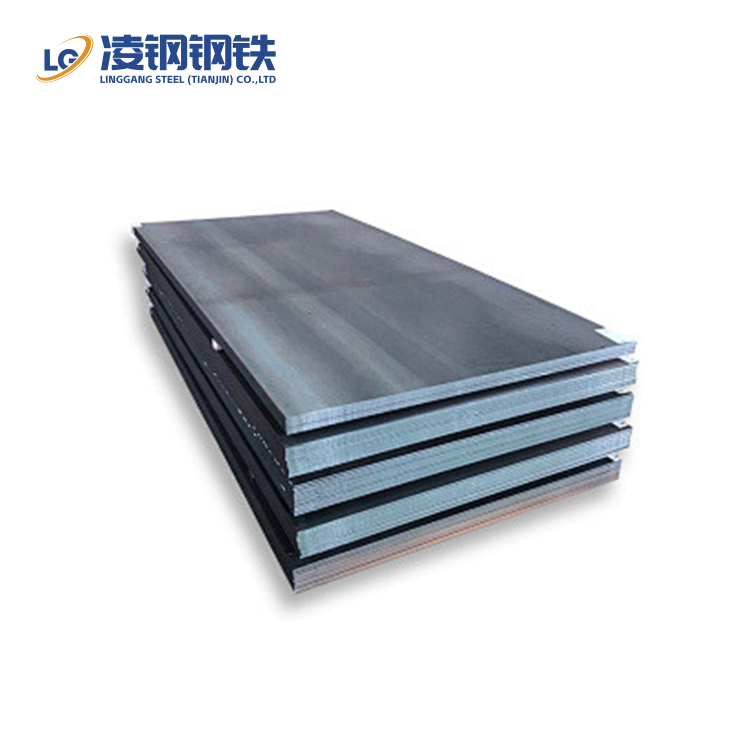

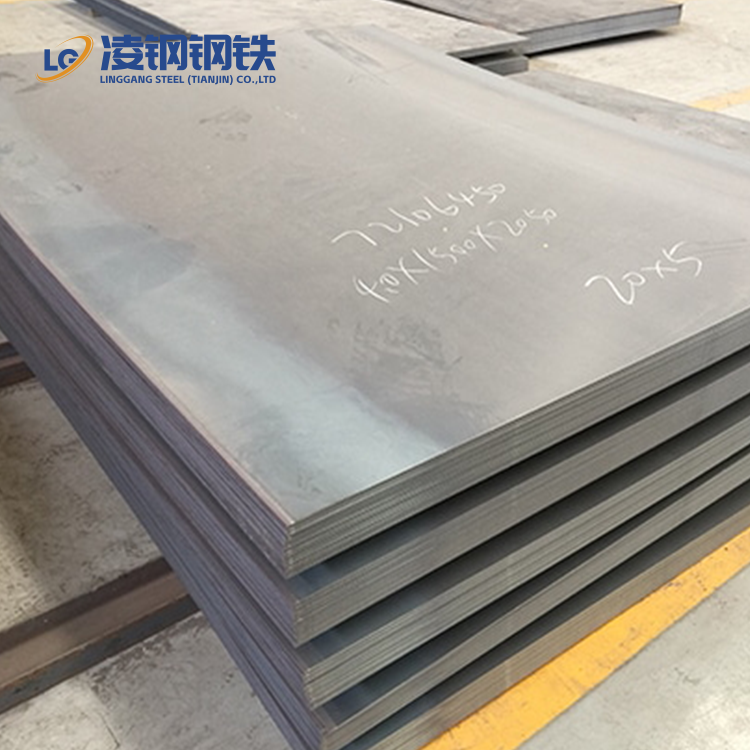

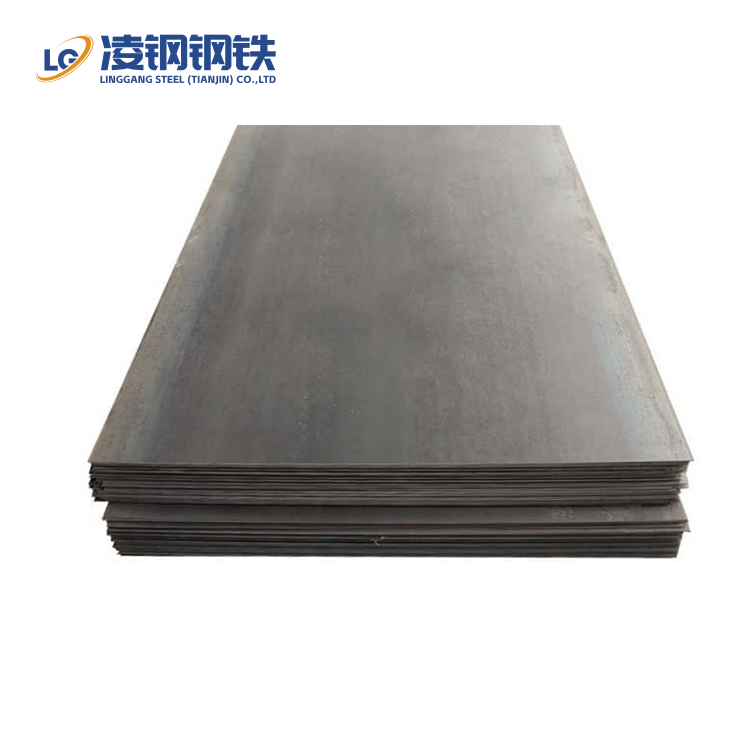

Carbon Shipbuilding Steel Plate Description

Shipbuilding steel plate refers to hot-rolled steel for the manufacture of ship structures produced in accordance with the requirements of the construction society. Often used as a special steel ordering, scheduling, sales, a ship including ship plates, steel and so on.

The Shipbuilding steel plate can be divided into general strength structural steel and high strength structural steel according to its minimum yield point strength level.

AGICO supplies and exports 2 types of ship steel, medium strength shipbuilding plate and high strength shipbuilding plate. All steel plate product can be manufactured according to Society LR, ABS, NK, GL, DNV, BV, KR, RINA, CCS, etc.

Product Parameters

Product Name	Carbon Shipbuilding Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Grade	C % ≤	Mn %	Si %	P % ≤	S % ≤	Al %	NB %	V %
A	0.22	≥ 2.5 C	0.10-0.35	0.04	0.40	-	-	-
B	0.21	0.60-1.00	0.10-0.35	0.04	0.40	-	-	-
D	0.21	0.60-1.00	0.10-0.35	0.04	0.04	≥ 0.015	-	-
E	0.18	0.70-1.20	0.10-0.35	0.04	0.04	≥ 0.015	-	-
A32 D32 E32	0.18	0.70-1.60 0.90-1.60 0.90-1.60	0.10-0.50	0.04	0.04	≥ 0.015	-	-
A36 D36 E36	0.18	0.70-1.60 0.90-1.60 0.90-1.60	0.10-0.50	0.04	0.04	≥ 0.015	0.015-0.050	0.030-0.10

Mechanical Properties

Grade	Thickness (mm)	Yieldpoint (Mpa) ≥	Tensile Strength (Mpa)	Elongation (%) ≥	V-impact Test			Cold Bend Test
					Temperature (℃)	Average AKV A kv /J		b=2a 180°	b=5a 120°
						Lengthways	Crosswise
						≥
A	≤ 50	235	400-490	22	—	—	—	d=2a	—
B					0	27	20	—	d=3a
D					-10
E					-40
A32	≤ 50	315	440-590	22	0	31	22	—	d=3a
D32					-20
E32					-40
A36	≤ 50	355	490-620	21	0	34	24	—	d=3a
D36					-20
E36					-40
